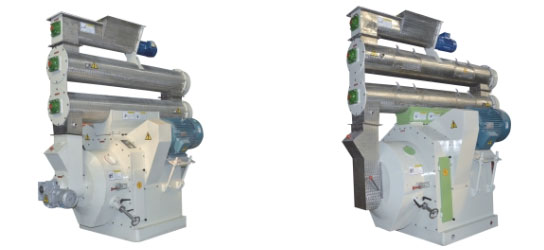

◎HKJ series pellet mill adopts SPZ narrow belt drive system, high driving efficiency & stability, low maintenance.
◎This series pellet mill can produce pellets of diameter 1.5mm to 8mm.
◎Fixed type stainless pellets cutting blade, Easy adjusting ©Quick detachable hold hoop type ring die
◎Feeding is controlled by frequency inverter.
◎It is used to produce high quality poultry, livestock, fish, shrimp feedstuff pellets.
Specification：
| Model |
Innder diameter
of die |
Pellets size |
Capacity |
Main motor power |
Feeder motor power |
Conditioner
Motor power |
| HKJ-32 |
￠ 320mm |
￠1.5-￠8mm |
2-3t/H |
22KW*2 |
1.1KW |
1.1KW |
| HKJ-35 |
￠ 350mm |
￠1.5-￠8mm |
3-5t/H |
30KW*2 |
1.1KW |
1.5KW |
| HKJ-40 |
￠ 400mm |
￠1.5-￠8mm |
5-8t/H |
45KW*2 |
1.1KW |
1.5KW |
| HKJ-450 |
￠ 450mm |
￠1.5-￠8mm |
5-12t/H |
45KW*2/55KW*2 |
1.5KW |
2.2KW |
| HKJ-480 |
￠ 480mm |
￠1.5-￠8mm |
5-20t/H |
45KW*2/75KW*2 |
1.5KW |
3KW |
|
